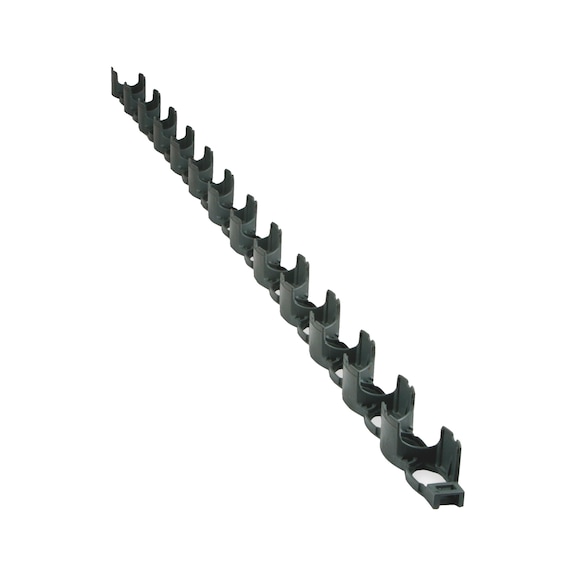

Spacer strip SOLID
Linear spacer for medium to heavy reinforcement bars
Register now and access more than 125,000 products
Variants
Register now and access more than 125,000 products
- Manufactured from high-quality, PVC-free polypropylene
- Equipped with openings designed to facilitate the flow and even distribution of concrete
- Stable and resistant to footfall
- High load resistance: 600 kg/m² (with two bars spaced apart)
- Quick and easy installation
- Approximate requirements: Up to 210 metres per 100 m² depending on the applied load
- Wide range of setting temperatures: -10 °C to +35 °C
Packaged by the metre
When ordering, the quantity and price is per metre
Construction of floor slabs, plinths, beams, foundations, industrial floors
The spacer strip can be used in two main ways, depending on the type of substrate and the configuration of the reinforcement bars:
Use on hard floors (e.g. floor slabs, plinths, industrial floors)
Position the strip directly on the ground beneath the lower reinforcement bars in the area where the concrete will be poured. This ensures proper coverage and stability during the concrete pouring phase
Use on insulating panels or soft substrates
In this case, the strip can be inverted and installed with the legs pointing upwards. This ensures effective spacing of the reinforcement bars even for compressible or non-structural materials
